1/4NPT 2MPa Ceramic Capacitive Pressure Sensor With Cable Outlet

Brand Name : WNK

Model Number : WNK83mA

Certification : CE

Place of Origin : China

MOQ : 1 piece

Price : Negotiation

Payment Terms : D/A, D/P, T/T, Western Union, Paypal

Supply Ability : 2000 pcs per week

Delivery Time : 8-10 working days

Packaging Details : Each piece into individual carton with foam protection,Or as per client's request

Pressure range : 0-2MPa,0-20bar,0-2000kPa

Output : 0.5-4.5V DC

Power supply : 4.75-5.25V DC

Material : Brass

Process connector : 1/4 NPT G1/4

Electrical connector : Cable Outlet/ Packard

Accuracy : 1%

Contact Now

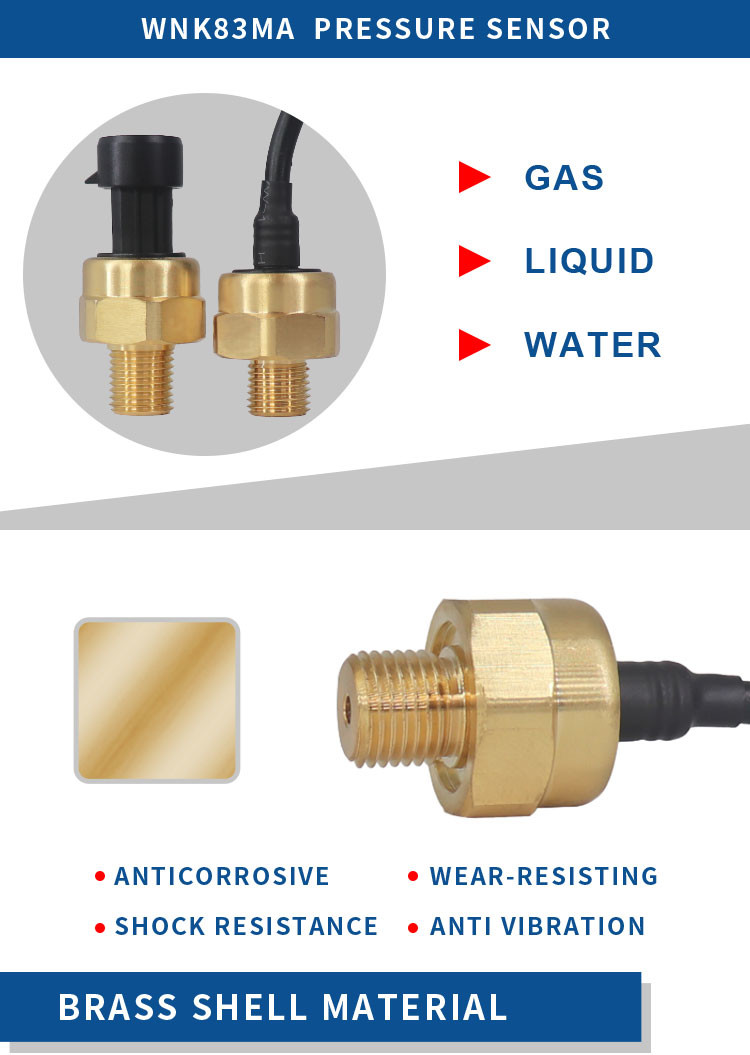

Customized Packard Cable Outlet 0.5 - 4.5V DC Output Water Pressure Sensor

Mini brass pressure sensor with low cost unit price $6 USD,suitable for air oil water,ready to ship now.

Applicable media	Liquid, gas and steam
Pressure range	0-2MPa
Cell	Ceramic capacitive pressure sensor
Pressure measurment	Gauge Pressure, Sealing pressure
Output	0.5-4.5V
Power supply	4.75-5.25 VDC
Accuracy(linearity,Hysteresis and Repeatability)	1%F.S.
Working temperature	-20~70ºC
Ambient temperature	-40~110ºC
Temperature drift(zero)	±0.15% F.S. (-20~70ºC)
Temperature drift(full range)	±0.15% F.S. (-20~70ºC)

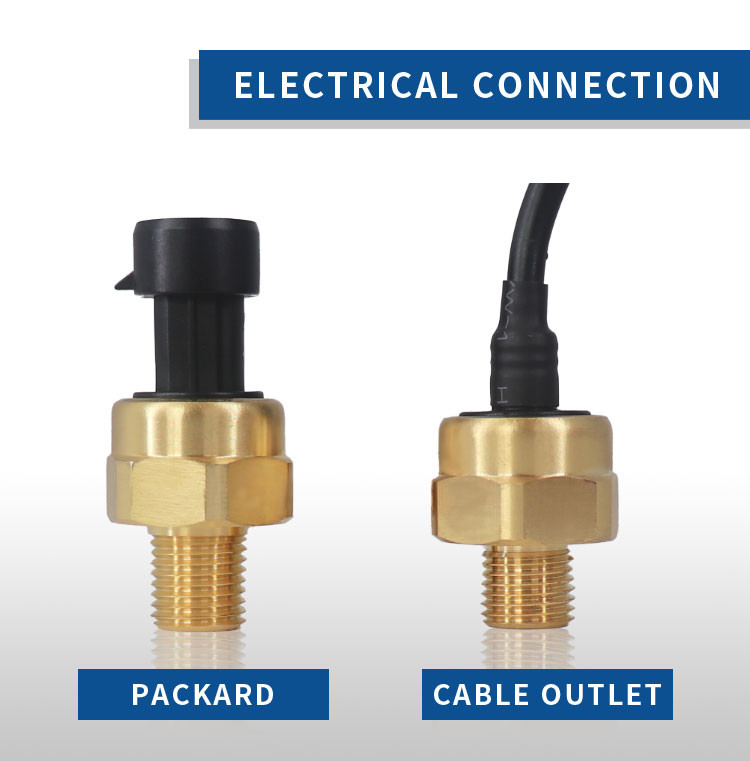

Electrical connection	Cable Outlet/ Packard
Mechanical connection	1/4 NPT G1/4
Housing material	Brass

1/4NPT 2MPa Ceramic Capacitive Pressure Sensor With Cable Outlet

Certification

1/4NPT 2MPa Ceramic Capacitive Pressure Sensor With Cable Outlet

FAQ

Q: Are you trading company or manufacturer ?

A: We are a manufacturer since the year 2004, committed to producing high accuracy, long-term stability, cost-efficient pressure/level/temperature measuring instruments.

Q: What's your quality control system?

A: Our factory is cerrified under ISO 9001-2015. All products are completed with temperature compensation and 48 hours aging test before shipment.

Q: What is the warranty of your products?

A: 12 month from shipment date, for non-man-made damages.

Q: Shipping and Delivery

A: Small orders are delivered with DHL, Fedex, TNT, UPS , with delivery time in 4 - 5 business days.

Large orders are recommended to ship by sea
